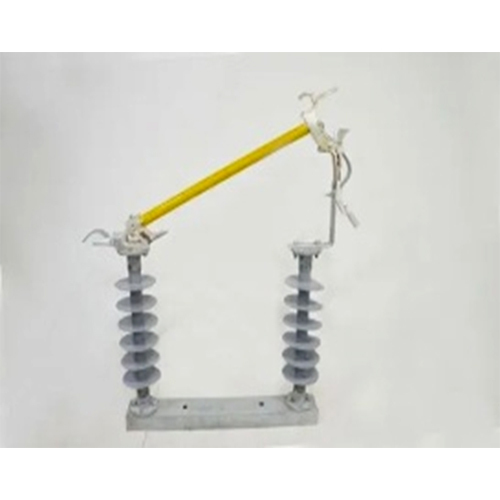

11KV DROP OUT FUSE

Name: 11KV DROP OUT FUSE
Brand: Kundu Electric
Price: 2100 INR
Availability: InStock

Price 2100 INR/ Piece

Get a Price/Quote

MOQ : 9 Pieces

11KV DROP OUT FUSE Specification

Rated Voltage
11 KV

Automation Grade
Manual

Temperature Range
-25C to +55C

Protection Level
IP 44

Mechanical Life
> 1000 operations

Number of Module
1

Max. Current
200 A

Finish Type
Galvanized & Painted

Circuit Type
Outdoor Distribution Circuit

Response Time
Instant (when fault occurs)

Product Type
Drop Out Fuse

Material
Porcelain Insulator, Copper and Galvanized Iron

Insulation Resistance
>1000 M

Contact Resistance
< 20

Max. Voltage
12 kV

Operating Temperature
-25C to +55C

Stoke
Manual (Hand operated)

Size
Standard (As per IS/IEC 60626)

Color
Grey, Metallic

Weight
8-10 Kg

Mounting Type
Pole Mounted

Current Rating
100 A / 200 A

No Of Poles
Single/Three

Design
Weatherproof, Robust Design

Ambient Humidity
95% RH

Terminal Type
Clamp Type

Arc Quenching Medium
Air

Operating Mechanism
Drop Out, Spring Assisted

Rated Frequency
50 Hz

Application
Used for outdoor overhead distribution line protection

Breaking Capacity
Up to 10 kA

Insulator Type
Porcelain / Polymer

Fuse Element Material
Copper / Silver

Suitable Conductor Size
16 mm 100 mm

11KV DROP OUT FUSE Trade Information

Minimum Order Quantity
9 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About 11KV DROP OUT FUSE

Select the Top-tier 11KV Drop Out Fuse, a highlighted achievement for outdoor power distribution protection. Designed with grandiose reliability, its astonishing breaking capacity of up to 10 kA ensures robust circuit safety. Featuring a polished weatherproof casing, galvanized & painted for long-lasting performance, this fuse employs copper or silver elements for optimal conductivity and spring-assisted drop-out operation. Its porcelain/polymer insulators and IP44 protection withstand harsh environments, while the clamp type terminals accommodate conductor sizes from 16mm2-100mm2. Engineered for outstanding mechanical life, it is a distinguished choice for service providers, suppliers, and traders across India.

Highlighted Material Features and Application Versatility

Constructed from highly polished porcelain and premium copper, the 11KV Drop Out Fuse is suitable for grandiose applications across outdoor overhead power distribution networks. Its robust, weatherproof design ensures unwavering reliability even in harsh environments. Its application method, featuring a manual spring-assisted drop-out mechanism, allows instantaneous circuit isolation during faults, providing exceptional protection for both single and three-pole outdoor circuits.

Estimate Delivery and Secure Transport Logistics

Delivery of the distinguished 11KV Drop Out Fuse is efficiently managed with estimated lead times ranging from 7-14 days, facilitated by reliable transport services across India. Each unit is securely packaged in strong, weather-resistant cartons, guaranteeing product safety during transit. Flexible payment terms are available for traders and service providers, ensuring a seamless procurement process with highlighted attention to logistics and client satisfaction.

FAQ's of 11KV DROP OUT FUSE:

Q: How does the 11KV Drop Out Fuse enhance outdoor distribution line protection?

A: This fuse quickly isolates faulty sections by instantly breaking the circuit when a fault occurs, using a manual drop-out, spring-assisted mechanism, and thus minimizes damage to equipment and ensures reliable line protection.

Q: What materials are used in the construction of the fuse, and how do they benefit its performance?

A: The fuse features copper or silver fuse elements, porcelain or polymer insulators, and a galvanized iron body. These materials combine to provide superior conductivity, insulation, longevity, and resistance to environmental stresses.

Q: When should the 11KV Drop Out Fuse be used in a power distribution system?

A: It is ideal for installation on outdoor overhead distribution lines requiring dependable protection against overloads and short circuits for single or three-pole configurations.

Q: Where can the 11KV Drop Out Fuse be installed?

A: The fuse is designed for pole-mounted setup in outdoor environments, such as substations and distribution line networks commonly found throughout urban and rural India.

Q: What is the process for operating and maintaining the fuse?

A: Operation is manual, with a simple hand-operated drop-out action for fault isolation. Routine maintenance includes periodic inspection for wear, checking insulation, and ensuring contact points remain polished and corrosion-free.

Q: How does the weatherproof and robust design contribute to the fuse's longevity?

A: The IP44 rating and weatherproof casing shield the fuse from moisture, humidity, and dust, while its robust build allows mechanical endurance for over 1,000 operations, supporting long-term dependable service.
