CENTER ROTATING ISOLATER

• Frequency (MHz)
• 50-60 Hz

• Function
• Isolate electrical circuit for maintenance and safety

• Height
• 450-600 mm

• Installation Options
• Pole Mounted / Structure Mounted

• Material
• Galvanized Iron, Copper, Porcelain Insulators

• Product Type

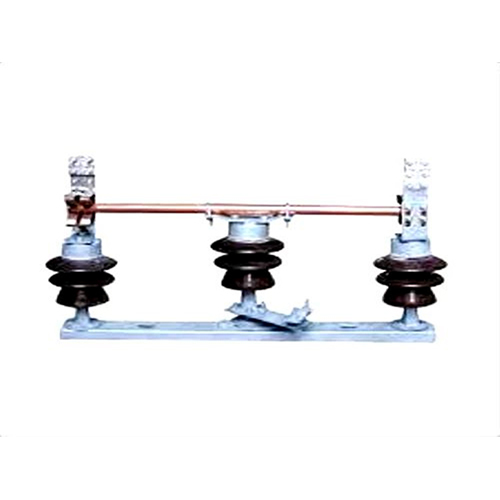

• 11KV Rotating Isolator

• Protection Class
• IP54

• Protection Level
• Up to 11,000 Volts

• Protection Mode
• Manual Disconnection

• Response Time
• Instantaneous (Mechanical Operation)

• Usage
• Outdoor switchgear for high voltage power lines

• Weight
• Approx. 28-35 kg

• Frequency (MHz)
• 50 Hz (standard power frequency)

• Function
• Electrical Circuit Isolation/Disconnection

• Height
• Approx. 1.2 - 1.5 m

• Installation Options
• Pole Mounted, Substation Installed

• Material
• Galvanized Steel, Porcelain Insulators

• Product Type

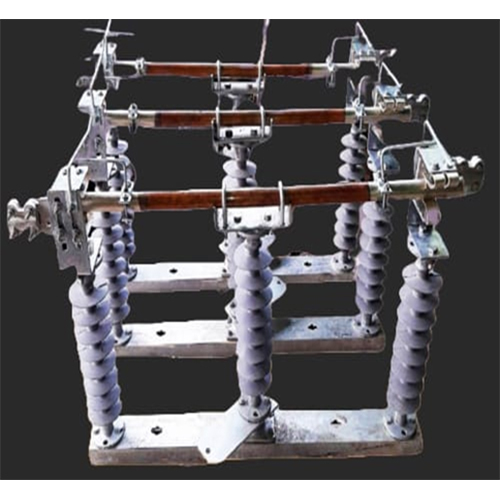

• 33KV Rotating Isolator

• Protection Class
• Outdoor High Voltage

• Protection Level
• Up to 33KV

• Protection Mode
• Manual Isolation

• Response Time
• Instantaneous with Manual Operation

• Usage
• Electrical Substations, Transmission Lines

• Weight
• Approx. 60-85 kg (varies with design)
