ALL TYPES OF PANEL

• Application
• Generator Power Management

• Base Material
• Other, Mild Steel Sheet

• Cabinet Material
• Powder Coated Steel

• Components
• Relays, Contactors, MCCB, Meters, Indicators

• Connectivity Type
• Wired

• Control System
• Automatic/Manual

• Cooling System
• Natural Air Ventilation

• Cover Material
• Other, Tempered Glass

• Current Rating
• 100A

• Dimension (L*W*H)
• 1000mm x 800mm x 250mm

• Display Type
• Other, Analog/Digital

• Features
• Overload Protection, Auto/Manual Operation, Indications, Phase Sequence & Fault Protection

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP55

• Material
• Mild Steel

• Maximum Output Current
• 100A

• Operating Voltage
• 415V AC

• Panel Type
• Floor Mounted

• Product Type
• Other, Generator Relay & Control Panel

• Protection Class
• Class I

• Protection Level
• IP55

• Rated Current
• 100A

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IEC 60204

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 2 mm

• Way
• 3 Way

• Application
• Generator Neutral Earthing

• Base Material
• Other, CRCA for Enclosure, Copper for Transformer

• Cabinet Material
• Powder Coated Steel, CRCA Sheet

• Components
• Grounding Transformer, Neutral Grounding Resistor, Protection Relays, CTs

• Connectivity Type
• Terminal Connections, Optional SCADA Interface

• Control System
• Manual/Automatic Fault Detection

• Cooling System
• Air Natural Cooled (Transformer), Air/Forced Cooling (Resistor)

• Cover Material
• Other, Powder Coated Steel

• Current Rating
• 100 300 A (dependent on model)

• Dimension (L*W*H)
• Custom Typically 900mm x 800mm x 2300mm

• Display Type
• Other, Analog/LED Indicators (Fault/Healthy)

• Features
• Earth Fault Limitation, High Reliability, Fully Compartmentalized, Easy Maintenance

• Frequency (MHz)
• 50 Hz (Nominal)

• IP Rating
• Other, IP42 / IP54

• Material
• Other, CRCA Sheet Steel, Copper windings, Stainless Steel (for Resistance Panel)

• Maximum Output Current
• Up to 300 A (typical, customizable)

• Operating Voltage
• 3300 V AC

• Panel Type
• Floor Mounted, Compartmentalized

• Product Type
• Other, Neutral Grounding Transformer with Resistance Panel (NGTP)

• Protection Class
• Class F (Transformer), Class H (Resistor)

• Protection Level
• Other, Indoor/Outdoor with Canopy

• Rated Current
• 50 A 300 A (configurable)

• Rated Insulation Voltage
• 3.6 kV

• Rated Operation Voltage
• 3.3 kV

• Rated Voltage
• 3.3 kV

• Standard
• IS 2026/IS 2705/IEC 60076

• Surface Color
• Other, Siemens Grey (RAL 7032)

• Surface Finish
• Other, Epoxy Powder Coated

• Thickness
• 2 mm to 3 mm (Panel Enclosure)

• Way
• Single Way (for Neutral Grounding)

• Application
• Medium Voltage Power Distribution

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel

• Components
• Lightning Arrester, Voltage Transformer, Current Transformer, Control & Relay, Terminal Bus Bar

• Connectivity Type
• Panel Terminal

• Control System
• Manual/Automatic

• Cooling System
• Natural Air Cooled

• Cover Material
• Other, Powder Coated Steel

• Current Rating
• 200A

• Dimension (L*W*H)
• 850 mm x 600 mm x 2200 mm

• Display Type
• Other, Analog/LED Indicators

• Features
• Compact Design, High Reliability, Maintenance Free, Easy Installation

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Other, Mild Steel (MS), Copper, Porcelain

• Maximum Output Current
• Up to 200A

• Operating Voltage
• 3.3KV

• Panel Type
• Outdoor/Indoor

• Product Type
• Other, LA Voltage Transformer with Current Transformer (CT) Panel

• Protection Class
• Class I

• Protection Level
• Other, Surge & Overvoltage Protection

• Rated Current
• 200A

• Rated Insulation Voltage
• 3.6KV

• Rated Operation Voltage
• 3300V

• Rated Voltage
• 3.3KV

• Standard
• IEC 60044, IS 3156, IEC 60099

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 2 mm (Panel body)

• Way
• 3-Way

• Application
• Power Distribution and Control

• Base Material
• Other, CRCA Sheet

• Cabinet Material
• Powder Coated Steel

• Components
• MCBs, Indicator Lamps, Push Buttons, Meters

• Connectivity Type
• Wired

• Control System
• Electrical Control

• Cooling System
• Natural Air Ventilation

• Cover Material
• Other, Powder Coated Steel

• Current Rating
• Up to 125A

• Dimension (L*W*H)
• 1200 mm x 800 mm x 750 mm

• Display Type
• Other, Analog / Digital Meter

• Features
• Rust Proof, Robust, User-Friendly

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Other, Mild Steel Sheet

• Maximum Output Current
• 125A

• Operating Voltage
• 415 V

• Panel Type
• Control Desk Panel

• Product Type
• Other, Desk Type Control Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• Up to 125A

• Rated Insulation Voltage
• 660 V

• Rated Operation Voltage
• 415 V

• Rated Voltage
• 415 V AC

• Standard
• IS 8623 / IEC 61439

• Surface Color
• Other, Powder Coated Grey

• Surface Finish
• Other, Matt

• Thickness
• 1.6 mm

• Way
• Multiple way

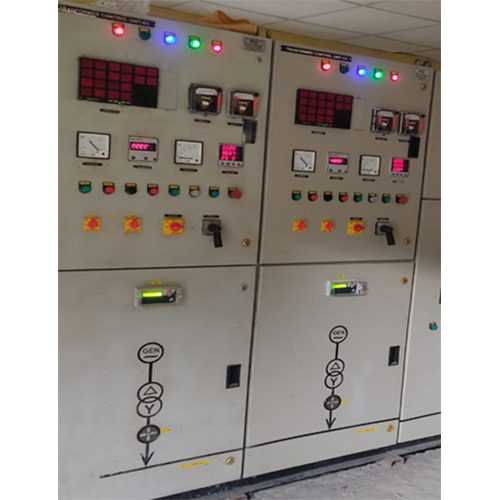

• Application
• Transformer Protection and Operation Control

• Base Material
• Other, Mild Steel Sheet

• Cabinet Material
• Mild Steel (Panel)

• Components
• Numerical/Conventional Relays, CTs, PTs, MCB, MCCB, Indicating Lamps, Control Switches, Terminal Blocks

• Connectivity Type
• Wiring Terminals, Cable Gland Entry

• Control System
• Microprocessor-Based / Electromechanical Relay Control

• Cooling System
• Natural Air Ventilation

• Cover Material
• Other, Tempered Glass Door / MS

• Current Rating
• 100A - 630A

• Dimension (L*W*H)
• 1200mm x 800mm x 400mm (Customizable)

• Display Type
• Other, LED Indications, Analog/ Digital Meter Display

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP55

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 630A

• Operating Voltage
• 415V AC

• Panel Type
• Floor Mounted

• Product Type
• Other, Transformer Relay Control Panel

• Protection Class
• Class I

• Protection Level
• IP55

• Rated Current
• 100A - 630A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IEC 60255, IS 3231

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 2 mm

• Way
• Single / Multiple Way (Customizable)

• Application
• Solar AC Power Distribution, Industrial & Commercial

• Base Material
• Other, Galvanized Iron or Mild Steel

• Cabinet Material
• Powder Coated Mild Steel

• Components
• Incoming MCCB, Changeover Switch, Busbar, Terminal Blocks, Voltmeter, Ammeter

• Connectivity Type
• Hard Wired

• Control System
• Manual Changeover

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, Powder Coated MS Sheet

• Current Rating
• 125A / 250A

• Dimension (L*W*H)
• 600mm x 500mm x 180mm (customizable)

• Display Type
• Other, Analog Meters

• Features
• Corrosion Resistant, Long Life, Easy Installation, Robust Design

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP54 / IP55

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 250A

• Operating Voltage
• 415V AC, 3 Phase

• Panel Type
• Distribution Board

• Product Type
• Other, ACDB Panel with Change Over Switch

• Protection Class
• Class I

• Protection Level
• Other, IP54 / IP55

• Rated Current
• 125A / 250A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IS/IEC 61439-1 & 2

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm

• Way
• Double Door 4 Way to 16 Way (customizable)

• Application
• Diesel Generator Sets, Industrial Automation

• Base Material
• Other, Powder Coated MS

• Cabinet Material
• Mild Steel

• Components
• AVR, MCBs, MCCBs, Indicating Lamps, Control Relays

• Connectivity Type
• Wiring Terminals

• Control System
• Automatic Voltage Regulation

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, MS Sheet

• Current Rating
• 100A

• Dimension (L*W*H)
• 1200mm x 800mm x 300mm

• Display Type
• Other, Analog & Digital Meters

• Features
• Corrosion Resistant, Robust Design, Easy Installation

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP55

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 100A

• Operating Voltage
• 415V AC

• Panel Type
• Automatic Voltage Regulator (AVR) Panel

• Product Type
• Other, Generator AVR Control Panel

• Protection Class
• Class I

• Protection Level
• IP55

• Rated Current
• 100A

• Rated Insulation Voltage
• 690V AC

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IEC 61439, IS 8623

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 2 mm

• Way
• Three Way

• Application
• DG Set / Generator Synchronization

• Base Material
• Other, Mild Steel Sheet

• Cabinet Material
• CRCA Sheet Steel

• Components
• Synchronizing Relay, Meters, Switchgear, MCCBs, Contactors, Control Wiring

• Connectivity Type
• Wired Terminal

• Control System
• Automatic / Manual Synchronizing

• Cooling System
• Natural Air Ventilation

• Cover Material
• Other, Transparent Acrylic / Mild Steel

• Current Rating
• 630 A

• Dimension (L*W*H)
• As per customer requirement

• Display Type
• Other, Digital / Analog Meter

• Features
• Auto/Manual operation, Overload Protection, Short Circuit Protection, Phase Sequence Monitoring, Modular Design, Easy Installation

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP42/IP54

• Material
• Mild Steel

• Maximum Output Current
• 630 A

• Operating Voltage
• 220-415 V AC

• Panel Type
• Synchronizing Panel

• Product Type
• Other, Synchronizing Relay and Control Panel

• Protection Class
• Class I

• Protection Level
• Other, IP42 / IP54

• Rated Current
• Up to 630 A

• Rated Insulation Voltage
• 690 V

• Rated Operation Voltage
• 415 V

• Rated Voltage
• 415 V AC

• Standard
• IEC 61439 / IS 8623

• Surface Color
• Other, Gray

• Surface Finish
• Powder Coated

• Thickness
• 1.6-2 mm

• Way
• 3 Way / Customized

• Application
• Solar Power Plants, Industrial, Commercial

• Base Material
• Mild Steel

• Cabinet Material
• Powder Coated Mild Steel

• Components
• MCB, SPD, Isolator, Terminal Blocks

• Connectivity Type
• Wired

• Control System
• Manual

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, Powder Coated MS

• Current Rating
• 100 A

• Dimension (L*W*H)
• 600 mm x 400 mm x 200 mm

• Display Type
• Other, Analog/None

• Features
• Shock Proof, Rust Resistant, Weather Proof, Easy Installation

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP55

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 250 A

• Operating Voltage
• 241000 V DC

• Panel Type
• Distribution Panel

• Product Type
• Other, DC Distribution Board

• Protection Class
• Class I

• Protection Level
• Other, IP 55

• Rated Current
• 160 A

• Rated Insulation Voltage
• 690 V

• Rated Operation Voltage
• 220 V - 415 V

• Rated Voltage
• 415 V AC

• Standard
• IEC 61439, IS 8623

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm

• Way
• 4 Way

• Application
• Outdoor Electrical Installations

• Base Material
• Other, Polycarbonate

• Cabinet Material
• Polycarbonate/ABS

• Components
• Enclosure, Gasket, Terminal Block

• Connectivity Type
• Cable Gland Entry

• Control System
• Manual Wiring

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, Polycarbonate/ABS

• Current Rating
• 63A

• Dimension (L*W*H)
• 200mm x 150mm x 100mm (typical)

• Features
• Weatherproof, UV resistant, Corrosion-resistant, Dustproof

• Frequency (MHz)
• 50-60

• IP Rating
• Other, IP65

• Material
• Other, Polycarbonate/ABS Plastic

• Maximum Output Current
• 63A

• Operating Voltage
• 230/415 V

• Panel Type
• Enclosure

• Product Type
• Other, Outdoor Light Junction Box

• Protection Class
• Class II

• Protection Level
• IP65

• Rated Current
• 63A

• Rated Insulation Voltage
• 660 V

• Rated Operation Voltage
• 415 V

• Rated Voltage
• 415V AC

• Standard
• IEC/IS Standards

• Surface Color
• Other, Grey

• Surface Finish
• Other, Matte

• Thickness
• 2-3 mm

• Way
• Single/Multiple Ways

• Application
• Power Distribution in Industrial & Commercial Buildings

• Base Material
• Mild Steel

• Cabinet Material
• CRCA Sheet Steel

• Components
• MCCB, SFU, MCB, Busbar, Neutral link

• Connectivity Type
• Hardwired

• Control System
• Manual Operation

• Cooling System
• Natural Air Cooled

• Cover Material
• Other, Mild Steel with Glass/Metal Door

• Current Rating
• up to 630A

• Dimension (L*W*H)
• As per requirement / Standard size

• Display Type
• Other, Analog/No Display

• Features
• Corrosion Resistant, Easy-to-install, Robust Construction

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP42 / IP54

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• up to 630A

• Operating Voltage
• 415V

• Panel Type
• Wall mounted / Floor mounted

• Product Type
• Other, LT Distribution Board Panel

• Protection Class
• Class I

• Protection Level
• Other, IP42 / IP54

• Rated Current
• 100A, 200A, 400A, 630A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IS 8623 / IEC 61439

• Surface Color
• Other, Powder Coated Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6mm / 2mm

• Way
• Single / Double / Triple Way
