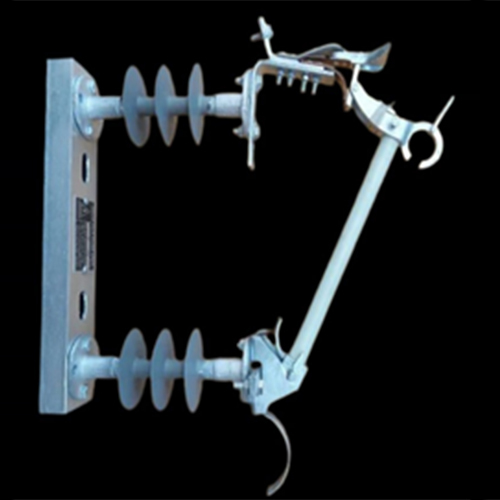

11kv Polymeric Drop Out Fuse

Get a Price/Quote

11kv Polymeric Drop Out Fuse Specification

Overheating Protection
Provided by Design (Fuse Operation)

Humidity %
Up to 95% RH

Surface Finish
Smooth/Matte

Operating Temperature
-30C to +55C

IP Rating
IP65

Connector Type
Copper/Aluminum Clamp

Mounting Type
Pole Mounted

Insulation Material
Silicone Rubber/Composite Polymer

Efficiency
100% (Rated Fuse Operation)

Shape
Rectangular Base with Cylindrical Fuse Holder

Feature
UV Resistant, Anti-Tracking, Corrosion Resistant

Product Type
Drop Out Fuse

Application
Outdoor Overhead Distribution Lines

Protection Level
High Voltage Protection

Frequency (MHz)
50 Hz

Rated Voltage
11 kV

Energy Consumption
N/A (Passive Device)

Output Type
N/A (Fuse)

Color
Grey/Metallic

Dimension (L*W*H)
410 x 90 x 140 mm

Weight
3.5 kg

Input Voltage
11,000 V AC

Phase
Single Phase

Size
Standard

No Of Poles
1

Connection Type
Bolted/Clamped Connection

Material
Polymeric (Silicone Rubber/Composite)

Life Expectancy
>20 Years under normal service

Fuse Rating
Up to 200 Amps

Discharge Class
Class II

Breaking Capacity
As per IS/IEC Standards, typically 8-12 kA

End Fitting Material
Hot Dip Galvanized Steel

Interchangeability
Suitable For Replacement In Existing 11kV Systems

Storage Conditions
Store in Cool & Dry Place

Creepage Distance
>340 mm

Mechanical Strength
High (Suitable For Outdoor Environments)

Arc Quenching Medium
Air

About 11kv Polymeric Drop Out Fuse

Discover the unassailable power of the 11kV Polymeric Drop Out Fuse-an unyielding solution for outdoor overhead distribution line protection. Constructed with dominant mechanical strength and a grandiose life expectancy exceeding 20 years, this fuse guarantees high voltage protection up to 200 Amps and breaking capacity per IS/IEC standards. With superior features like UV resistance, anti-tracking, and corrosion-proof design, it blends seamlessly as a replacement in existing 11kV systems. Reserve yours now at the lowest price-simply Add to Cart to secure enduring safety and efficiency for your infrastructure!

Versatile Use and Superior Application Surface

The 11kV Polymeric Drop Out Fuse is renowned for its adaptability and design, being predominantly used as a critical protective device in outdoor overhead distribution lines. Its application spans high-voltage utility environments, thanks to a robust polymeric composite build and high mechanical strength. Best mounted on poles, it is tailored for surfaces exposed to harsh climatic conditions, ensuring durability and resilience. The smooth, matte finish and standard size allow for effortless installation on varied outdoor surfaces.

Global Export Markets and Streamlined Order Processing

Serving traders, suppliers, and service providers across India and beyond, this fuse is a sought-after product in global export markets. Order processing is swift, with products shipped from major FOB ports in India at the lowest price guarantee. Sample availability facilitates informed decision-making before large-scale procurement. Harness seamless logistics, timely dispatch, and the assurance of a dominant, reliable protective solution with every order of the 11kV Polymeric Drop Out Fuse.

FAQ's of 11kv Polymeric Drop Out Fuse:

Q: How is the 11kV Polymeric Drop Out Fuse used in power distribution systems?

A: This fuse is installed on outdoor overhead distribution lines, providing high-voltage protection by interrupting electrical faults to safeguard equipment and ensure uninterrupted service.

Q: What are the main benefits of using a polymeric drop out fuse over conventional options?

A: The polymeric design offers superior UV resistance, corrosion resistance, and high mechanical strength, supporting grandiose durability and efficient operation in diverse outdoor conditions.

Q: When should I replace or reserve a new 11kV Polymeric Drop Out Fuse?

A: Replacement is recommended whenever the existing system shows signs of wear or after a significant fault event. Reserving a new unit ensures you maintain unassailable protection at all times.

Q: Where can I apply the 11kV Polymeric Drop Out Fuse for optimal results?

A: It is ideal for single-phase outdoor overhead distribution lines, especially in high-humidity or high-temperature areas requiring robust, weather-resistant protective devices.

Q: What is the order processing and shipping method for this product?

A: Orders are processed efficiently and shipped via major FOB ports in India, ensuring prompt delivery at the lowest price. Samples can be requested to evaluate before finalizing bulk purchases.
