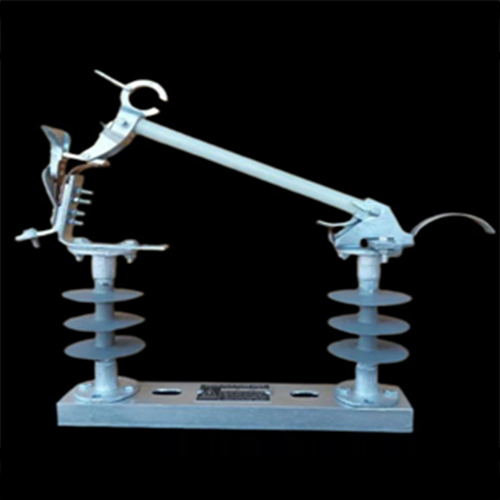

33kv Polymeric Drop Out Fuse

Get a Price/Quote

33kv Polymeric Drop Out Fuse Specification

Operating Temperature
-20C to +55C

Overheating Protection
YES

IP Rating
IP 54

Mounting Type
Pole Mounted

Insulation Material
Silicone Rubber

Connector Type
Copper / Aluminium Lugs

Efficiency
99%

Feature
Weather Resistant, High Dielectric Strength

Humidity %
Up to 95% RH

Surface Finish
Smooth / Matte

Shape
Rectangular

Power Factor
>0.90

Product Type
Drop Out Fuse

Application
Overhead Distribution Lines, Transformer Protection

Protection Level
High

Frequency (MHz)
50 Hz

Rated Voltage
33 kV

Output Type
Fused Output

Color
Grey

Dimension (L*W*H)
510 x 170 x 90 mm

Weight
8.5 kg

Phase
Three Phase

Input Voltage
Up to 33 kV

Size
Standard

No Of Poles
1

Connection Type
Bolted

Material
Polymeric & Metal

Fuse Element Material
Silver or Copper

Creepage Distance
900 mm

Replacement Type
Easily Replaceable Cartridge

Arcing Horn
Yes, Provided

Current Rating
100 A, 200 A

Breaking Capacity
12.5 kA

UV Resistance
Yes

Mechanical Strength
High (able to withstand environmental stress)

About 33kv Polymeric Drop Out Fuse

Experience lofty protection and first-class performance with our trending 33kV Polymeric Drop Out Fuse. Personalise your safety with options in current rating (100A, 200A) and fuse element material (silver or copper). Designed for overhead distribution lines and transformer protection, its terrific creepage distance (900 mm), superior mechanical strength, and UV resistance guarantee reliable operation even under severe weather. Enjoy features like a smooth finish, easily replaceable cartridge, weather resistance, and high dielectric strength. IP54 rated, this fuse offers high efficiency (99%) and is engineered for seamless installation by suppliers and traders across India.

Applications & Advantages of the 33kV Polymeric Drop Out Fuse

The 33kV Polymeric Drop Out Fuse is ideal for overhead distribution lines and transformer protection, offering a robust solution for power utilities. The product's high protection level, weather resistance, and smooth surface deliver competitive advantages in tough environments. It is suitable for three-phase systems and environments prone to high humidity (up to 95% RH), making it versatile and reliable for a wide range of electrical distribution applications.

Sample Policy, Outlay, and Domestic Market Reach

We provide flexible sample policies for the 33kV Polymeric Drop Out Fuse, tailored to both domestic and export market needs. Our transparent outlay ensures straightforward order completion, supported by secure and durable packaging for safe delivery. Our main domestic market spans across India, catering to the varied needs of serviced providers, suppliers, and traders, ensuring rapid turnaround and trusted logistics support for every order.

FAQ's of 33kv Polymeric Drop Out Fuse:

Q: How does the 33kV Polymeric Drop Out Fuse ensure reliable operation in harsh conditions?

A: The fuse features high mechanical strength to withstand environmental stress, UV resistance, weather-resistant material, and a high creepage distance of 900 mm, ensuring safe and consistent protection even in severe weather conditions.

Q: What are the competitive advantages of using this fuse for transformer protection?

A: This fuse offers first-class dielectric strength, easily replaceable cartridges, high efficiency (99%), and top-grade insulation materials, providing robust protection, reduced downtime, and extended equipment lifespan.

Q: What is the process to replace the fuse cartridge?

A: The fuse cartridge is designed for easy replacement. Simply disconnect the power, unbolt the old cartridge, and install the new one using standard copper or aluminium lugs. No specialised tools are required, ensuring swift maintenance.

Q: Where can the 33kV Polymeric Drop Out Fuse be effectively utilised?

A: It is ideal for overhead distribution lines, transformer protection, and applications in three-phase electrical systems, especially in environments with high humidity or extreme temperatures ranging from -20C to +55C.

Q: How does this fuse benefit service providers and traders?

A: With its high breaking capacity (12.5 kA), standardised size, and IP54 rating, the fuse simplifies installation and maintenance, increases operational safety, and reduces total cost of ownership for providers and distributors in the power sector.
