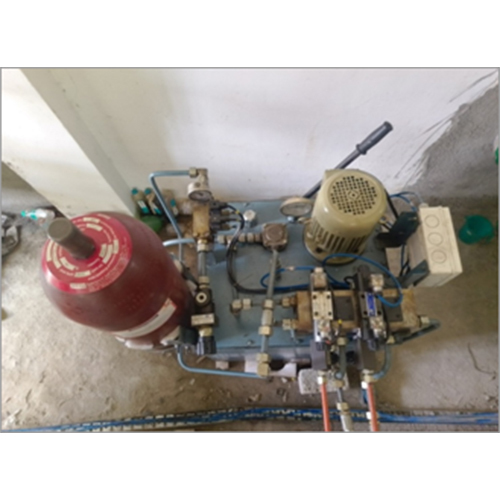

Industrial Hydraulic Power Pack

Get a Price/Quote

Industrial Hydraulic Power Pack Specification

Application
Industrial Automation, Press Machines, Injection Molding, Testing Equipment, Construction Machinery, Material Handling

Mounting Type
Base Mounted/Custom Mounting Options

Flow Rate
Up to 100 LPM (as per application)

Efficiency
High efficiency design with low power consumption

Operating Pressure
Up to 250 Bar

Power Source
Electric Motor Driven

Features
Compact design, corrosion resistance, low noise operation, easy maintenance, modular assembly, robust construction

Accessories
Pressure Gauge, Return Line Filter, Level Indicator, Electric Control Panel, Suction Strainer, Accumulator (Optional)

Connectivity Type
Hydraulic Hose / Pipe Fittings

Sealing Type
Nitrile Rubber or Polyurethane Seals

Temperature Range
-10C to +80C

Body Material
Mild Steel

Type
Industrial Hydraulic Power Pack

Structure
Standard Compact Modular

Force
Adjustable up to required output

Speed
Variable, depending on configuration

Voltage
220V/380V/415V, 3 Phase AC

Reservoir Capacity
Up to 500 Liters (customized as per requirement)

Oil Filtration
10~25 Micron Standard

Safety Provisions
Relief Valve, Overload Protection, Emergency Stop

Pump Type
Gear/Vane/Piston Pump Options

Cooling System
Air/Oil Cooler (Optional)

Color/Finish
Industrial Grade Powder Coated

Motor Power
0.75 kW to 75 kW

Noise Level
<75 dB (at 1m distance)

Control Method
Manual/PLC based Electrical Controls

Maintenance Access
Front/Top Access Panels for Easy Maintenance

Customization
Available for specific industrial requirements

About Industrial Hydraulic Power Pack

Hydraulic Power Pack

Applications for Plywood Press, Deep Draw Press, Press Break, Machine Tools, Foundry Furnace, Steel Plants, Sugar Factories, Cement Plants, Textile Machineries, Plastic Injection, Molding Machines, Rolling Mills, Submarine, Shipping, Hydro Power Plant, Earth Moving Equipments, Road Construction Machines, etc.

Specification

Motor Power- 3 HP
Voltage - 440 V AC
Phase - Three Phase
Motor Speed - 1500 rpm
Frequency (Hz) - 50 Hz
Automatic - Grade Semi-Automatic
Material - Cast Iron
Power Source- Electric
Oil Capacity- 80L
One Pressure switch.
Pressure relive valve.
Pressure gauge- 0-150Kg
Gear pump - 10LPM
Accumulator- Hydac
Country of Origin - Made in India

Customizable Power and Capacity

Our hydraulic power packs are engineered to meet specific industrial needs, with reservoir sizes up to 500 liters and pump options tailored for optimal performance. Whether you require gear, vane, or piston pumps, each system is designed to deliver precise force and flow rates according to your application demands.

Efficient, Reliable Operation in Demanding Environments

Built for use in automation, construction machinery, and material handling, these units ensure consistent performance under high pressure, with robust safety provisions like relief valves and emergency stops. Corrosion-resistant coatings and quality sealing extend operational life, while noise levels remain below 75 dB for workplace comfort.

User-Friendly Maintenance and Control

Each hydraulic power pack features front or top maintenance access, making routine servicing straightforward. Choose manual or PLC-based electrical controls to suit your workflow, and benefit from modular assembly for future upgrades or easy customization. Standard accessories and advanced filtration keep your system running smoothly.

FAQ's of Industrial Hydraulic Power Pack:

Q: How do I select the appropriate pump type for my hydraulic power pack?

A: The choice between gear, vane, or piston pumps depends on your application's flow rate, pressure requirements, and operational environment. Gear pumps offer simplicity and reliability, vane pumps provide smoother flow, and piston pumps excel in high-pressure scenarios. Our team can help recommend the best variant based on your specifications.

Q: What are the advantages of using a modular hydraulic power pack with a compact design?

A: A modular and compact design streamlines installation and integration into existing systems. It allows for easier customization, upgrades, and maintenance, minimizing downtime and space requirements on the factory floor while maintaining robust performance.

Q: When should the oil filtration system be maintained or replaced?

A: Oil filtration systems should be inspected regularly, typically during scheduled maintenance intervals, to ensure efficiency and prevent contamination. Replacement intervals depend on operating conditions, but following the manufacturer's guidelines-especially when using 10~25 micron filters-ensures optimal system protection.

Q: Where can these hydraulic power packs be used?

A: These units are versatile and suitable for numerous industrial applications, such as automation systems, press machines, injection molding equipment, construction machinery, material handling solutions, and various test rigs.

Q: What process is involved in the customization of a hydraulic power pack?

A: Customization begins with a thorough assessment of your operational requirements, followed by selection of reservoir volume, pump type, electric motor capacity, control method, cooling options, and accessory integration. Our engineers design a tailored solution, ensuring compatibility and optimal efficiency for your workflow.

Q: How does the cooling system improve performance and longevity?

A: Optional air or oil cooling systems regulate the operating temperature of the power pack, reducing wear on hydraulic components and extending overall system lifespan. Stable operating temperatures help maintain high efficiency and consistent output.

Q: What are the key benefits of choosing this industrial hydraulic power pack?

A: Key benefits include high energy efficiency, low noise operation, enhanced safety features, customizable configurations, robust corrosion-resistant construction, and simplified maintenance. These features collectively improve productivity and lower total cost of ownership.
